METAL DRYWALL

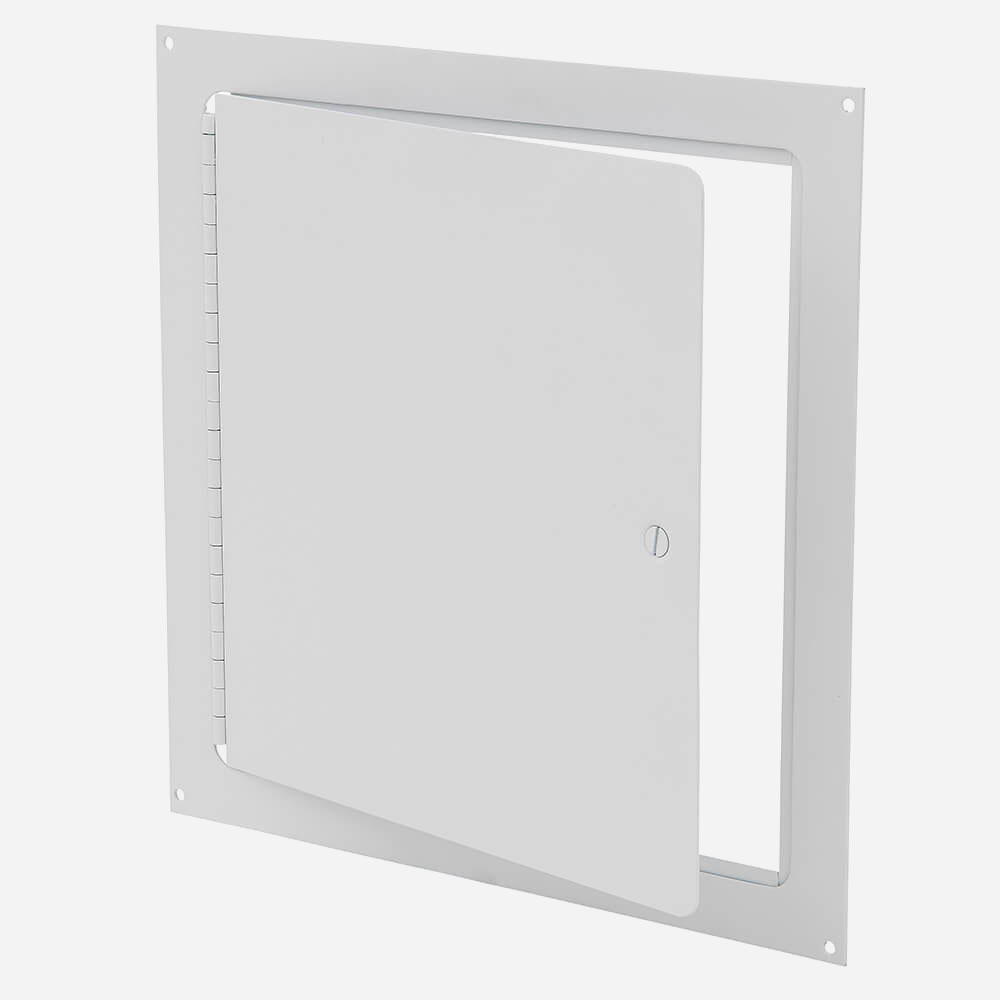

DW Series – Drywall Access Doors
DW Series

Doors are ideally suited for new installations or for remodeling, in masonry, tile, wood or other wall and ceiling surfaces. Door features rounded safety corners. Door and Frame are fabricated from 16 gage, galvannealed steel with a prime coat finish.

Frame is one piece construction, 1″ wide and provides perfect concealment of the rough wall opening. Wall frame is provided with 1/4″ mounting holes for fastening within the furred spaces allowing faster installation and fixing maximum clearance.

Concealed Pivoting Rod Hinge prevents distortion and closes door squarely. Doors 24″ or larger are provided with a continuous piano hinge.

Latch is screwdriver operated.

Finish is a prime coat suitable for painting.

Optional Latches: CL- Cylinder Lock • AKL- Allen Key Latch • TH- T Handle

Optional Finish: SS- Stainless Steel

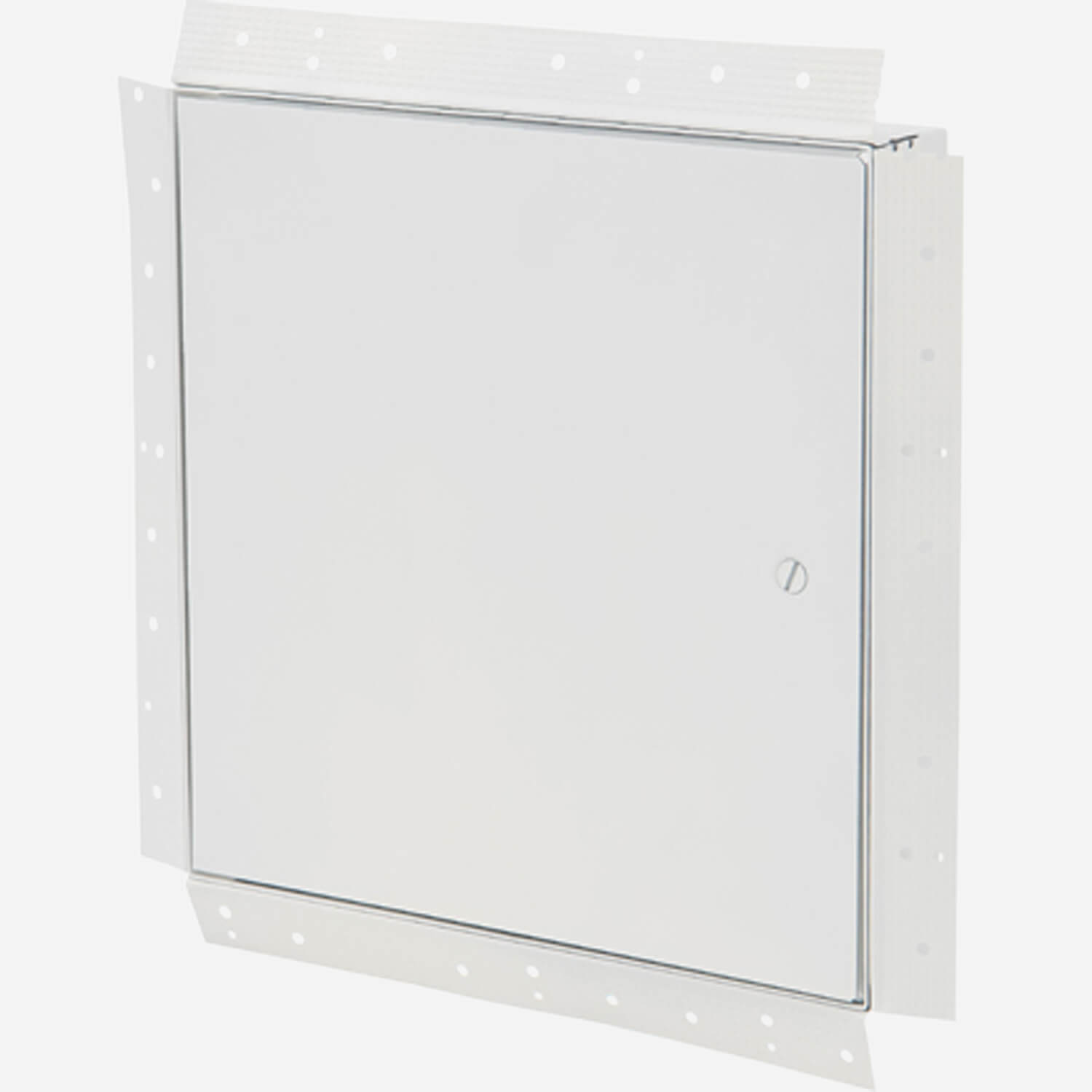

DWB Series – Drywall Bead Access Doors

DWB seriesDoors are designed for flush installation in dry wall surfaces. Door features a concealed hinge that prevents distortion and closes door squarely.

Door and Frame are fabricated from 16 gage, galvannealed steel with a prime coat finish.

Frame has 1/4″ mounting holes positioned to allow anchoring directly to studs to assure a secure mounting. A drywall bead on the frame allows the drywall joint compound to be applied over the bead at the same time as the joints and corners.

Flange has prepunched holes to provide grip for the joint compound and facilitate fastening the flange to framing members with drywall screws.

Concealed Pivoting Rod Hinge prevents distortion and closes door squarely. Doors 24″ or larger are provided with a continuous piano hinge.

Latch is screwdriver operated.

Finish is a prime coat suitable for painting.

Optional Latches: CL- Cylinder Lock • AKL- Allen Key Latch • TH- T Handle

Optional Finish: SS- Stainless Steel


MULTI SURFACE

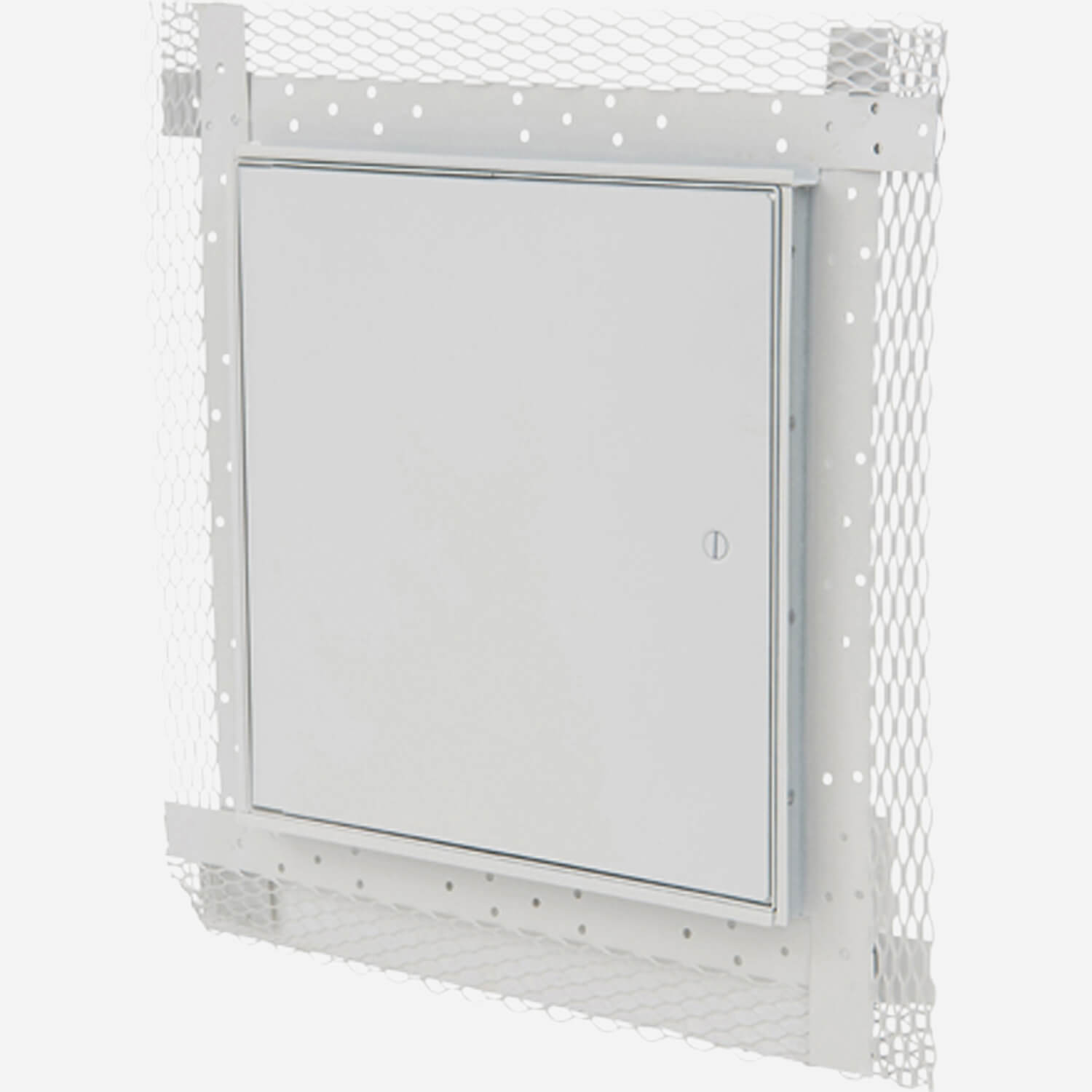

ML Series
– Metal Lath Access Doors

ML SeriesDoors are designed specifically to meet the needs of plaster construction. Door has a 3″ wide metal lath on all four sides for keying into plaster.

Door and Frame are fabricated from 16 gage, galvannealed steel.

Concealed Pivoting Rod Hinge prevents distortion and closes door squarely. Doors 24″ or larger are provided with a continuous piano hinge.

Latch is screwdriver operated.

Finish is a prime coat suitable for painting.

Optional Latches: CL- Cylinder Lock • AKL- Allen Key Latch

Optional Finish: SS- Stainless Steel

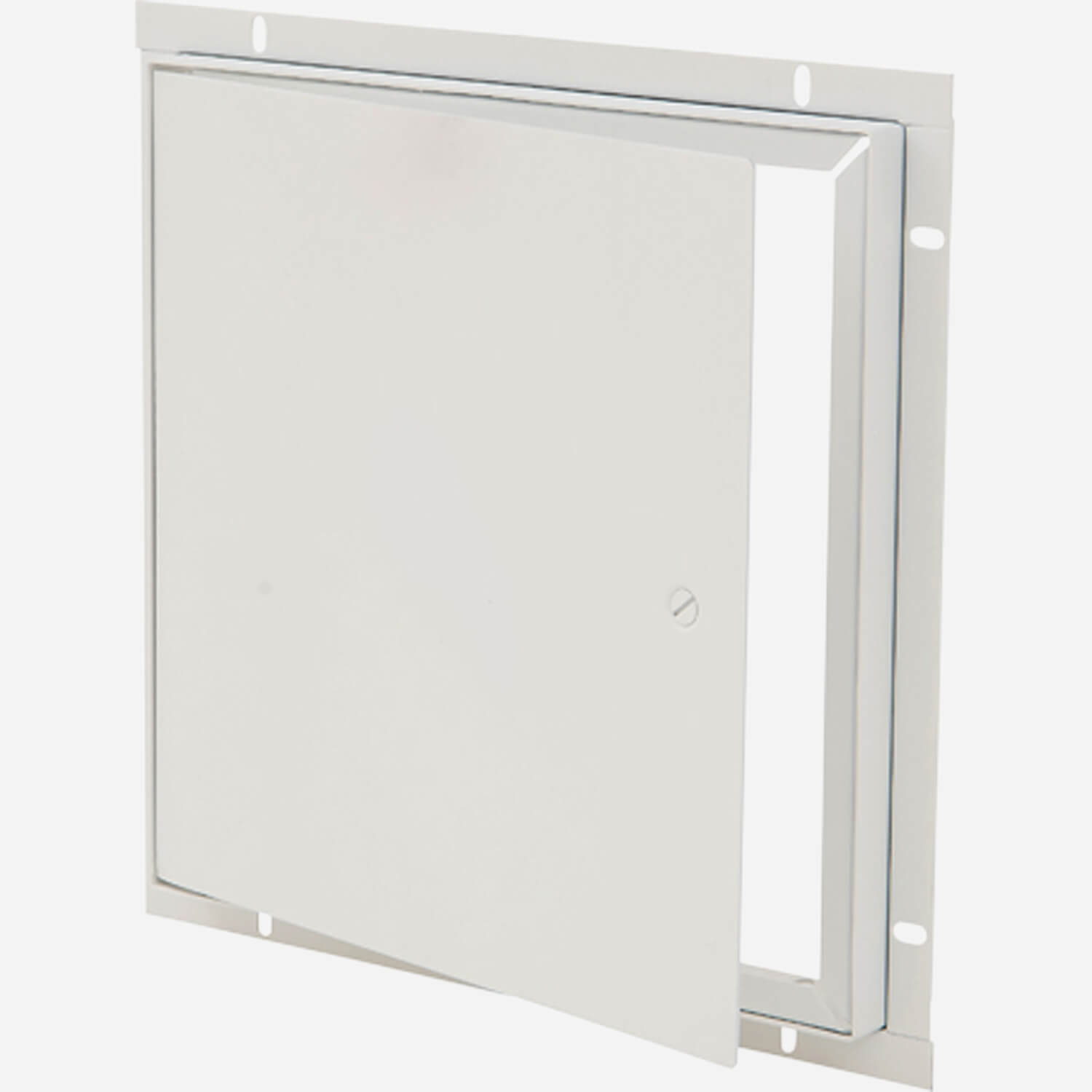

PW Series – Plaster Wall Access Doors

PW SeriesDoors are designed specifically to meet the needs of plaster construction. Door has 3/4″plaster ground for plaster finish.

Door and Frame are fabricated from 16 gage, galvannealed steel with a prime coat finish.

Frame has 1/4″ mounting holes to facilitate installation.

Concealed Pivoting Rod Hinge prevents distortion and closes door squarely.

Latch is screwdriver operated.

Finish is prime coat suitable for painting.

Optional Latches: CL- Cylinder Lock • AKL- Allen Key Latch

Optional Finish: SS- Stainless Steel

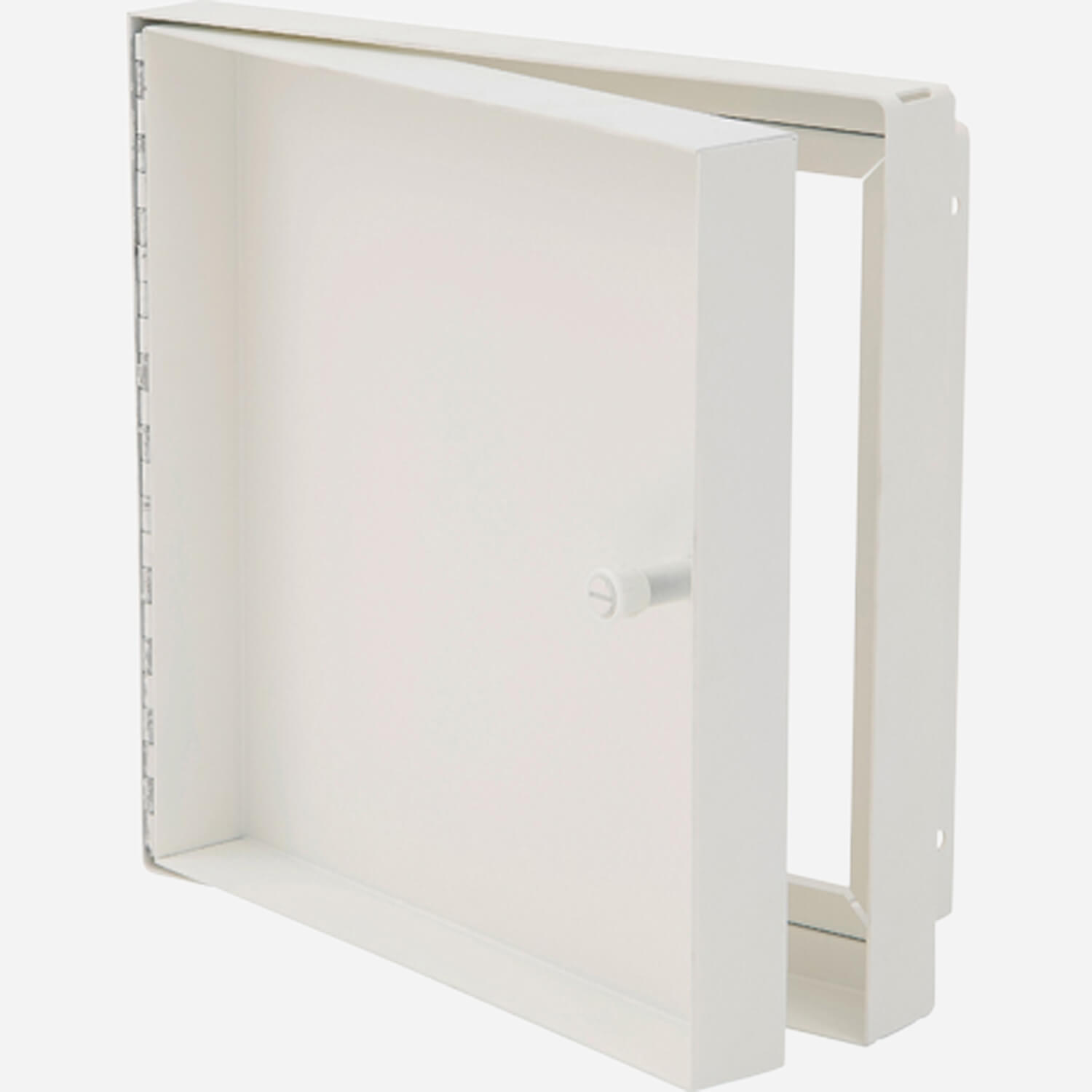

AT Series – Acoustical Tile Access Doors

AT series

Doors are designed for use with acoustical tile or gypsum board walls and ceilings. The door is engineered to install flush, virtually concealed. Door is recessed 5/8″ to accept acoustical tile or gypsum board.

Door is 16 gage and frame is 12 gage, galvannealed steel with a prime coat finish.

Concealed Hinge operates completely out of sight so that only the metal thickness of the door and frame is visible.

Latch is screwdriver operated.

Optional Latches: CL- Cylinder Lock • AKL- Allen Key Latch

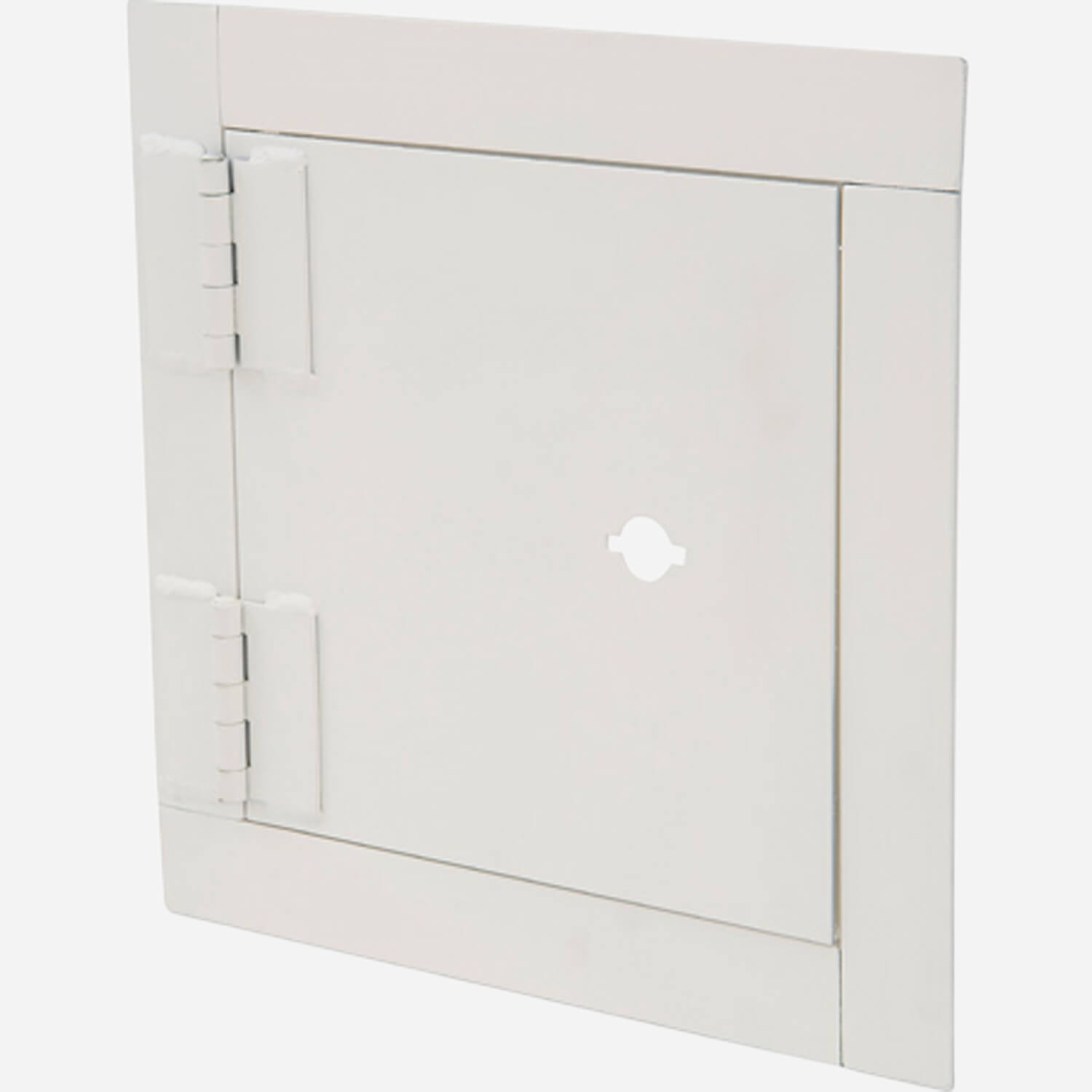

 SLA – Slammer Access Doors

SLA seriesDoors are designed to provide security access with the strength and durability to withstand abusive and vandal-prone conditions prevalent in many institutions. Without sacrificing security, these doors allow maintenance personnel access to plumbing chases, shut-off valves and electrical apparatus located behind finished walls. Door is fabricated from 10 gage steel and is provided with a high security, vandal resistant, detention type lock. Doors can be manufactured with locks provided by others.

Frame is 3/16″ x 2″ x 2″ angle steel, welded and with pre-punched mounting holes.

Latch is a detention type dead bolt lock with paracentric key.

Hinges are heavy duty and are welded to the door and frame.

Finish is a prime coat suitable for painting.

Option: LD- Lock by Others

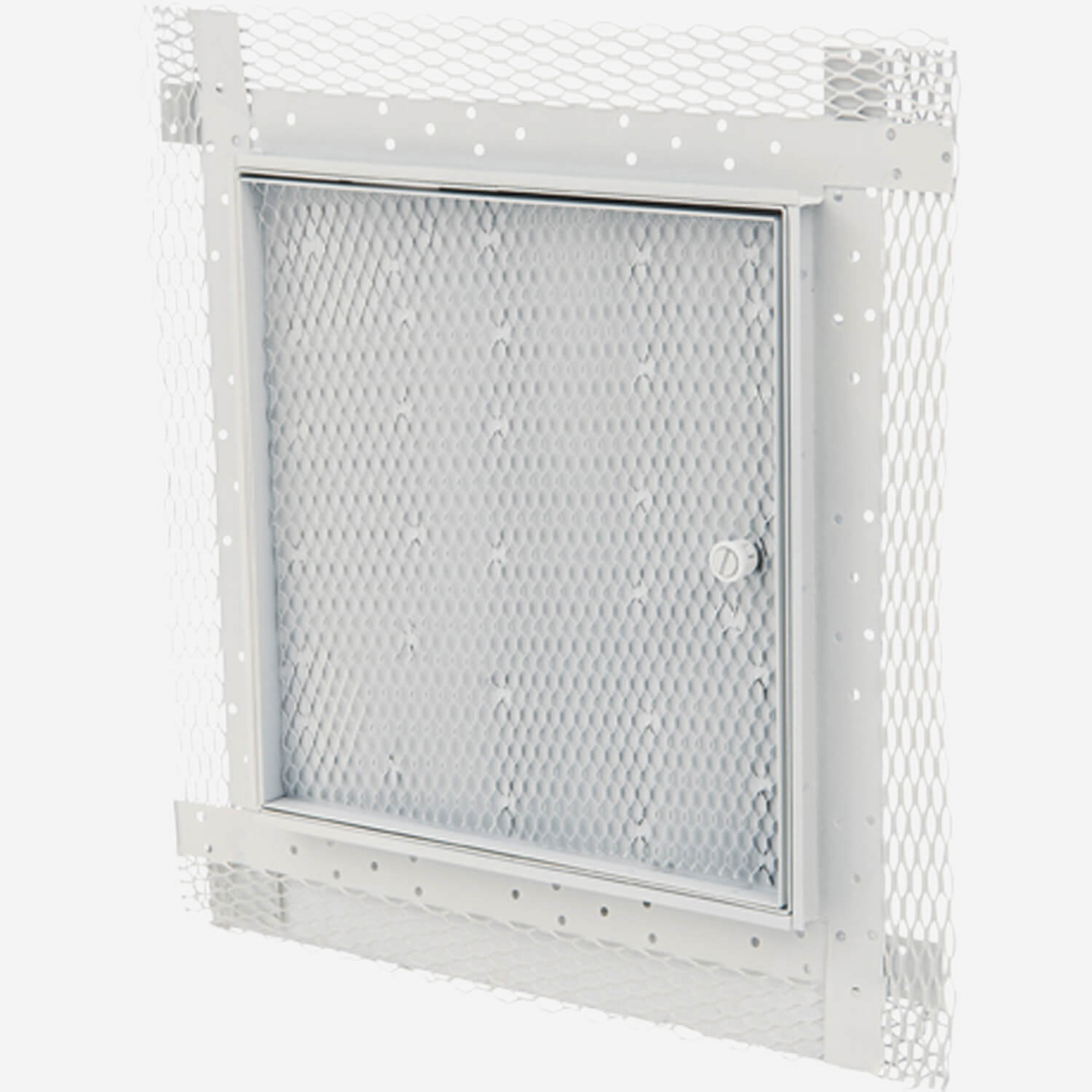

AP Series – Acoustical Plaster Access Doors

AP Series

Doors are designed to install flush with the plaster surface assuring an attractive finish. Doors are recessed 5/8″ and lined with a metal lath to allow plaster of surrounding surfaces to fill in the face of the door.

Door and Frame are fabricated from 16 gage, galvannealed steel with a prime coat finish.

Frame has a 3″ wide metal lath on all four sides to key into the plaster.

Concealed Hinge is recessed and operates completely out of sight so that only the metal thickness of the door and frame is visible.

Latch is screwdriver operated.

Finish is a prime coat suitable for painting.

Optional Latches: CL- Cylinder Lock • AKL- Allen Key Latch

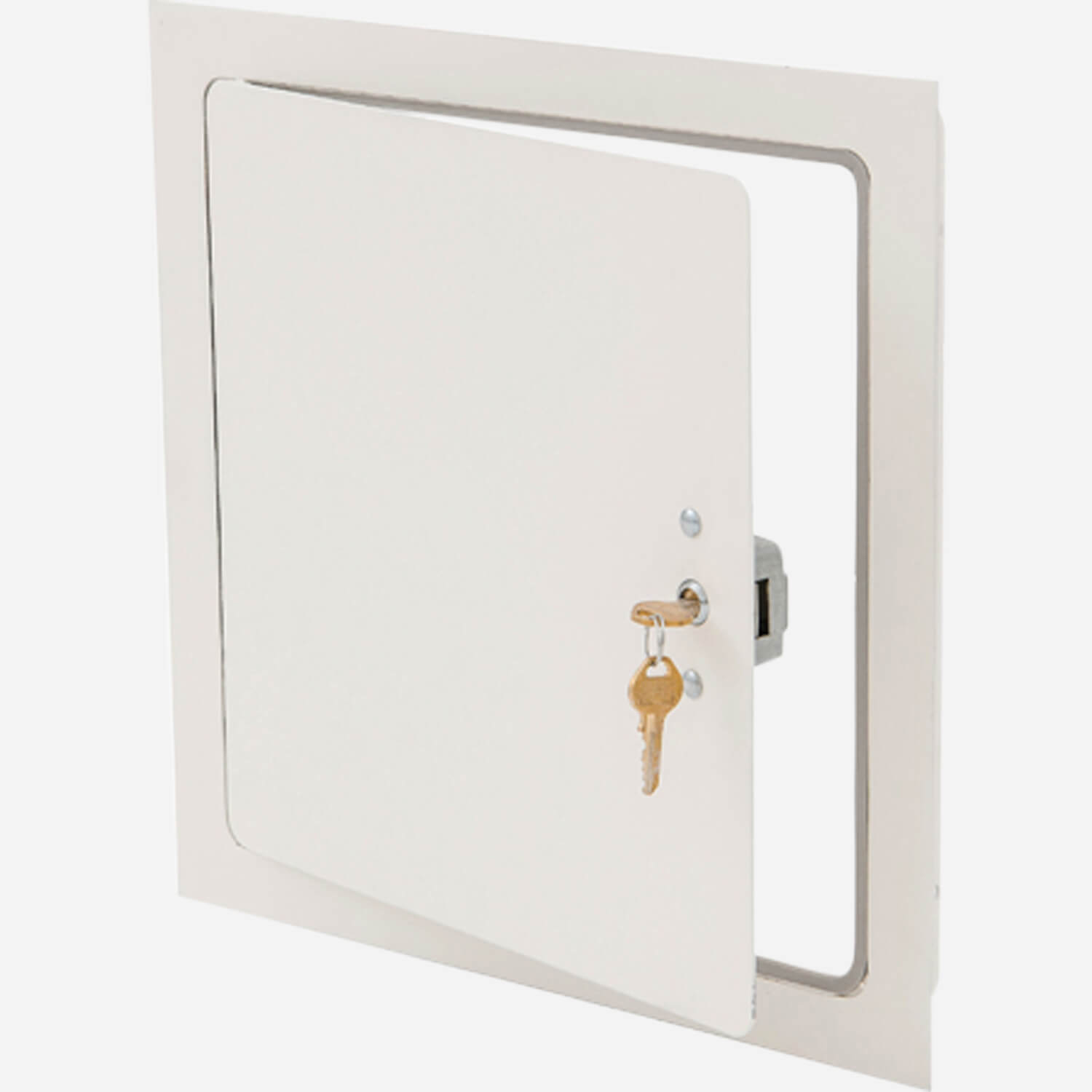

SLK – Shur-Lok Access Doors (drywall, masonry or concrete)

SLK seriesDoors are designed for drywall, masonry or concrete construction and provide the security required in today’s schools, hospitals, hotels, and correctional institutions.

Door and Frame are fabricated from 14 gage, galvannealed steel and the door is provided with a 16 gage vertical reinforcement channel.

Lock is an automatic springbolt type featuring a precision mechanism. When the door is closed in the locked position, the uniquely designed angled cam lock automatically engages. The key can only be removed when the lock is in the locked position.

Hinge is a concealed type.

Concealed Pivoting Rod Hinge prevents distortion and closes door squarely. Doors 24″ or larger are provided with a continuous piano hinge.

Finish is a prime coat suitable for painting.

Optional Finish:
SS- Stainless Steel

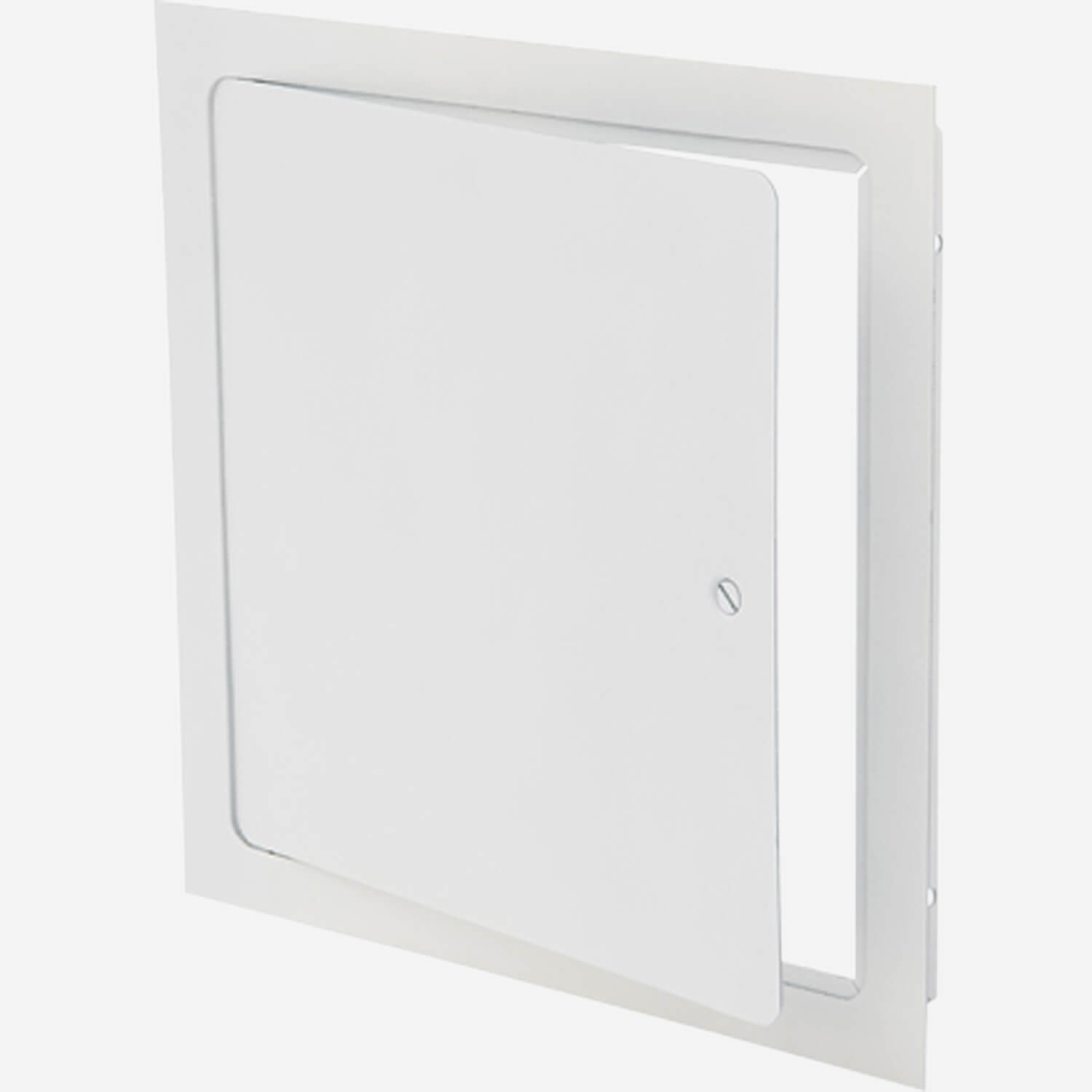

SF – Shur-Lok Access Doors (drywall, masonry, plaster)

SF SeriesDoors are designed for surface installation on drywall, masonry or thin-coat plaster. Door features rounded safety corners and is attached to the frame with a continuous piano hinge allowing a 175 degree opening.

Door and Frame are fabricated from 14 gage, galvannealed steel.

Frame is easily secured to the studs and anchored through predrilled holes in each corner.

Latch is screwdriver operated.

Finish is a prime coat suitable for painting.

Optional Latches: CL- Cylinder Lock • AKL- Allen Key Latch • TH- T Handle


DT – Duct Access Doors (insulated)

DT SeriesDoors are designed to provide access to equipment installed within ducts. The door panels are insulated and gaskets between the panel and frame will assure tight seals without obstruction in the air system.

Door and Frame are fabricated from 24 gage, galvanized steel.

Door is 1″ thick, double wall construction and insulated.

Frame is provided with knock-over tabs and easily attached to the duct.

Hinge is continuous piano type.

Cam Latch is self-tightening and hand operated.

Optional Latches:
CNH- Cam Latch-No Hinge


FIRE-RATED / RESISTANT

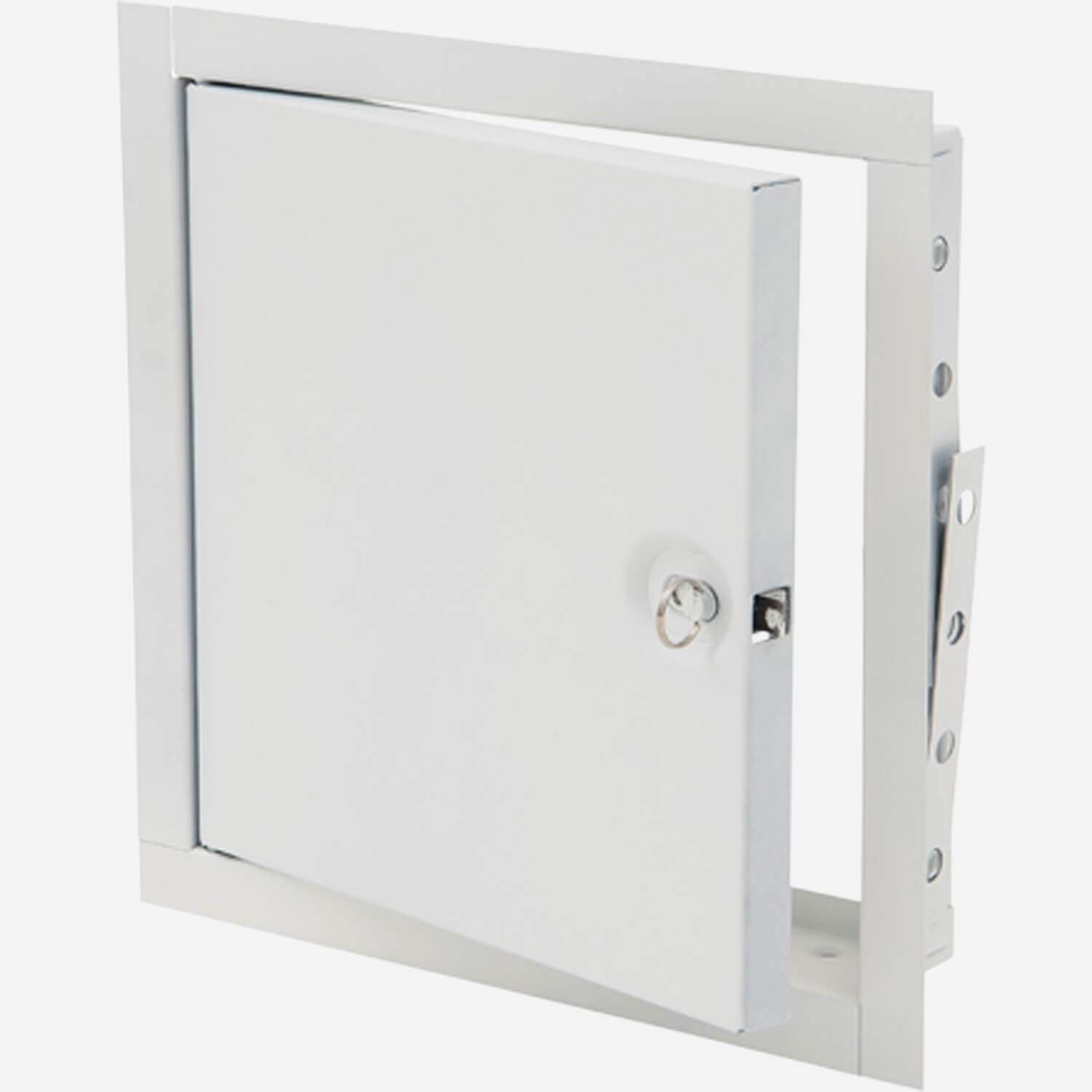

FR Series – Fire Rated Access Doors

FR seriesDoors are Fire Rated by Underwriters Laboratories Inc., for 1-1/2 hours, “B” Label, and meet ANSI-UL 10B standard. Door has a heavy duty spring closer to assure positive latching when panel closes. This door is for wall installation only.

Door and Frame are fabricated from 16 gage, galvannealed steel with a prime coat finish. Door has a heavy duty spring to assure positive latching.

Frame is equipped with both masonry anchors and bolt holes to facilitate installation in all types of wall construction.

Concealed Hinge operates completely out of sight so that only the door and frame is visible.

Exterior Latch is recessed and is operated using a ring attached to the sliding bolt.

Interior Latch Release Slide is included enabling door to be opened from the inside.

Finish is a prime coat suitable for painting.

Optional Latches: CL- Cylinder Lock

Optional Finish: SS- Stainless Steel


CFR Series – Ceiling Fire Resistant Access Doors

CFR seriesDoors are designed for use in a suspended dry wall ceiling as part of a fire rated ceiling assembly. The CFR Series door, itself, is not fire rated. However, the combination of steel and fire rated tile maintains the fire resistant quality of the ceiling assembly. Door is recessed 1-1/2″ to accommodate dual layered ceiling tile.

Door is fabricated from 16 gage, galvannealed steel with a prime coat finish.

Frame is fabricated from 18 gage, galvannealed steel with a prime coat finish.

Hinge is a continuous piano type.

Latch is screwdriver operated.

Optional Latches:
• CL- Cylinder Lock
• AKL- Allen Key Latch


PLASTIC

Plastic Access PanelFLUSH MOUNT
Mounts to rough framing on new construction. Flanged nailed face down gives guide for plaster, stucco, dry wall and tile build ups.

SURFACE MOUNT PRESS-IN REPLACEMENT
Replaces old rusted, kinked, missing or destroyed metal access panels. Usually a pressin fit. See #AP1414

TILE-Able APPLICATION

• Use flexible adhesive and grout on door
• Adjust frame height to finished wall

Download SACHWIN Brochure PDF

Download Access Panel Information PDF


GRG PANELS

Download Hinged Access Panel Information PDF
Download Cut Sheet PDF


ROOF HATCHES

Roof HatchRoof Access Hatches are designed to provide convenient, cost saving access to the roofs of buildings, allowing for ladders and stair access to the roof from the interior of the building. Elmdor Roof Access Hatches are designed and engineered for durability and safety, with ease of installation. The Roof Access Hatch installs easily over the roof opening and is secured from the base flange to the roof. Curb construction shall be 14 gage (G90) galvanized steel with durable recoatable gray primer finish. It shall be 12″ in height with a 3-1/2″ wide mounting flange with mounting holes for roof attachment.

Cover is 14 gage (G90) galvanized steel with radius corners for safety and shall be fully welded at the corners for watertight construction.

Latching includes interior handle, exterior handle and provisions for a padlock, both inside and out.

Hardware shall include an automatic, hold-open arm with vinyl grip and compression springs encased in telescopic tubes for smooth door operation.
